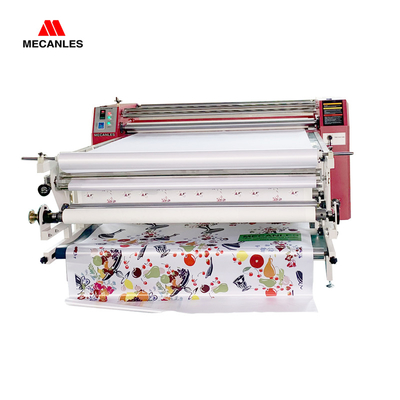

Name: Multifunctional 100% Polyester Heat Transfer Machine Roll To Roll Heat Press Oil Heating Sublimation Calender With High Quality Good Service
Brand: Multifunctional 100% Polyester Heat Transfer Machine Roll To Roll Heat Press Oil Heating Sublimation Calender With High Quality Good Service
SKU: 170 x 42
Price: 13 USD
Availability: InStock
Rating: 5 (150 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Type: Heat Press Machine

Applicable Industries: Garment Shops, Manufacturing Plant, Home Use, Printing Shops, Advertising Company, Fabric Company

Condition: New

Plate Type: Flatbed Printer

Model Number: 170 x 42

Usage: Paper Printer, Label Printer, Card Printer, Cloths Printer, Heat Transfer Printing

Automatic Grade: Semi-automatic

Color & Page: Multicolor

Voltage: 220V

Dimensions(L*W*H): 244x 122 x90cm

Weight: 1000kgs

Warranty: 2 years

After-sales Service Provided: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Πιστοποίηση: CE

Heating Method: Half Oil Heating

Working Size: 1.7meter (66.93'')

Drum: 420mm

Temperature Range: 0--299Â°C

Production Speed: 1meter / min

Feature: Multifunctional

Feed Media: Roll Fabrics, Cut Sheets

MOQ: 1 Set

Heating Tube Qty: 12pcs

Pre-heating Time: 50mins

Βασικές πληροφορίες

Πιστοποίηση: CE

Model Number: 170 x 42

Πληρωμής & Αποστολής Όροι

Packaging Details: Solid Wooden Box for Export Use

Supply Ability: 100 Set/Sets per Month

Περιγραφή προϊόντων

Product Description

Product Advantages:
1). Oil heating. Stainless steel heating tube direct heats the oil, temperature raise rapidly. It can reach 200 °C in 50 mins.
2). Multifunction. It can work with roll to roll fabric, either cut piece fabrics.
3). Outstanding Drum. Oil drum is the core and key parts for rotary heat press machine. Our oil drum is unique, it's production technique, such as
advanced machining, bending, welding by presion machines, this makes it perfect quality and high security.
4). Supreme Blanket. Our machine use the best woollen material which from Dupont USA. It is excellent heat-proof materials and its life is better.
5). Three feeding rollers. It can also feed the tissue paper which protects the blanket clean.
6). Air pression tighten system. The air cylinder can adjust the tension between the drum and the blanket. Thus the printing quality is even and vivid.
7). High speed for production, 1 meter per minute.
8). Automatical conveyor belt. It is convenient to collect the printed fabrics.
9). All electrical parts assemabled on our machine are selected. Some parts are import brands from Japan and Germany.
10). Printing quality far exceed other factories in China. Vivid and bright.

Attention: as we are leading and No.1 manufacturer in China, some irregular factories are always trying to copy our design and technology, so our machine internal structurer pictures won't be shown here. Kindly understand. If you are interested in our machine, please contact us.

TECHNICAL PARAMETERS

Model	DG-1700-42
Machine Voltage	220V (Optional: 380V)
Working Current	30A
Maximum Printing Width	170cm or 67’’ (Optional: 190, 220, 260,cm)
Drum Diameter	42cm or 16.5’’ (Optional: 60, 80, 100cm)
Heating Method	Oil Heating
Oil Type	First-Grade Heat Transfer Oil
Oil Qty	Half Drum
Drum Safety Level	Supreme Explosion-Proof
Heating Tubes Qty	12pcs
Working Temperature Range	0~299°C
Recommend Working Temperature	220~230°C
Pre-Heat Time	40 mins
Function	Roll to Roll Fabrics & Cut Piece
Table Size	(L)169 x (W) 190x (H)95cm
Production Speed	1 meter / min
Speed Control	Infinite Variable Speed
Main Motor Power	30W
Fabric Feeding Roll Length	210cm
Max Fabric Feeding Width	173cm
Blanket Width	176cm
Blanket Thickness	12mm
Main Body Dimension	(L) 244 x (W) 122 x (H) 90cm
Metal Plate Thickness	3mm
Feed Method	Up Feed, Bottom Collect
Feeding Roller Qty	3 Feeding Rollers
Feeding Materials	Printed Paper, Blank Fabrics, Tissue Paper
Fabric Feed	Plain Roller
Printed Paper Feed	Air Inflatable Roller
Tissue Paper Feed	Air Inflatable Roller
Collect Roller Qty	2 Collect Rollers
Printed Paper Collect	Air Inflatable Roller
Tissue Paper Collect	Air Inflatable Roller
Printed Fabric Collect	Auto Conveyor Belt
Printed Fabric Roller	Air Inflatable Roller (Optional)
Total Power	25KW
Net Weight	1000KGS
Floor Area	(L)244 x (W)291 x (H)90cm
Weight After Pack	1100KGS
Size After Pack	265 x 110 x 156cm

Packaging & Shipping

Our Services

1). We offer 7 * 24 online Service

2). Sending Technician to customer place

3). Video teaching

FAQ

Q: I am new in this field, can I use this machine?
A: Yes. Our machine is user-friendly and easy to operate. We have full installation video and operation video to teach you step by step.

Q: Do you produce other models?
A: Yes. We are the largest and the most professional producer for heat transfer machine in China. We have full ranges of models with different series.
For machine width, we produce from 1.3 meter to 3.2meter. For drum, from 30cm to 100cm. We produce roll to roll heat transfer machine, multifuntion transfer machine,
ribbon heat press transfer machine, also flat heat press machine.

Q: I don't understand the drum in different diameter very well, what is the difference between a small drum and big drum?
A: The drum size almost decide the production speed. The bigger drum, the higher production speed.

Q: You have many models, speficiations, how can I choose?
A: Just let us know what exact application will you do with our machine, the materials, the width, the production speed you require. Then our professional sales person will recommend the best choice for you.

Q: What kinds of fabrics the machine can do?
A: 100% Polyester, Chiffon, Silk Fabrics, Oxford Fabrics, Polyester-Cotton Fabrics (cotton≤15%), Spandex, Lycra, Satin, Dacron, Non-woven etc.The fabric must have good thermostability, can not contains much cotton. Can also do on Nylon, depends on specific ingredient, color fastness on Nylon is not ideal.

Q: Can you send technician to my place for installation and training if I buy your sublimation heat transfer machine?
A: Yes. We do can it. Our technician has the visa for many countries. We can send technician to your plant to help you install machine and teach you use the machine. This process usually needs 3~4 days in your place. You need to pay to us for the round airline tickets in advantage. Also, you should be in charge of our technician's hotels, foods, personal safety,etc in your country.

Q: How's your warranty for the machine?
A: On year warranty for our mecanles rotary heat press machine. The blanket and oil are not included, these due are consumables for this machine.

Q: If some parts damaged when I receive the machine, what shall I do?
A: Generally, our package is the best, the machine will arrive at your place in good condition. In case, some parts damages during transportation, please contact us and send us the pictures of the damage parts, we will send you the replacement immediately.

Q: What is the consumables for this machine?
A: The consumable of the machine is the oil, you need to add oil one time per year, like 15~20 kgs every year. The oil cost is like 50~80 us dollars per year.The blanket usually can be used for two years, depends on workload too. Other parts, not easy to be damaged.

Q: I am a dealer. Can I be your distributor in my country?
A: Yes. It is possible. We welcome global dealers to build cooperation with us. For specific markets, please contact our sales person to negotiate details.

Q: Do you supply printer, consumables?
A: Yes. We offer complete heat transfer solutions, so we offer printer, inks, sublimation paper too. All these products are at high level, high quality.
